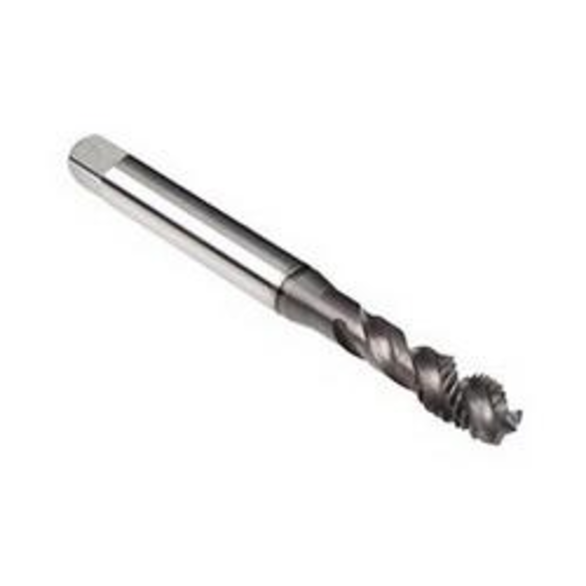

Emuge BU50C400.5009 Enorm 1-Z BU50C400 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 1/4-20 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, GLT-1 Coated, HSS-E
EMUGE BU50C400.5009
$68.31
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1/4-20
- Material: HSS-E
- Finish/Coating: GLT-1 Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2B
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.15 in
- Series: Enorm 1-Z BU50C400
- Shank Diameter: 0.255 in
- Shank Length: 1.969 in
- Thread Length: 0.669 in
- Thread Standard: UNC
- The fast spiral flute (45 deg) provides good chip removal from blind holes
- Z designates a tool design for CNC controlled machines with synchronous feed control
- GLT-1 coating - hard surface coating with anti-friction layer
- In a PVD process (500 deg C) a coating thickness of 2 to 4 um can be realized
- The combination of a hard surface coating (approximately 3000 HV) with an anti-friction layer yields additional tool life
- Chip flow is also improved
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole threads in long chipping materials
Emuge Spiral Flute Tap | Form C Fast Reinforced Shank | Series: Enorm 1-Z BU50C400 | Measurement System: Imperial | UNC | 1/4-20 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | GLT-1 Coated | Class of Fit: 2B | Right Hand Cutting | 0.669 in Thread Length | 3.15 in Overall Length | 0.255 in Shank Dia | 1.969 in Shank Length | Right Hand Flute Direction
