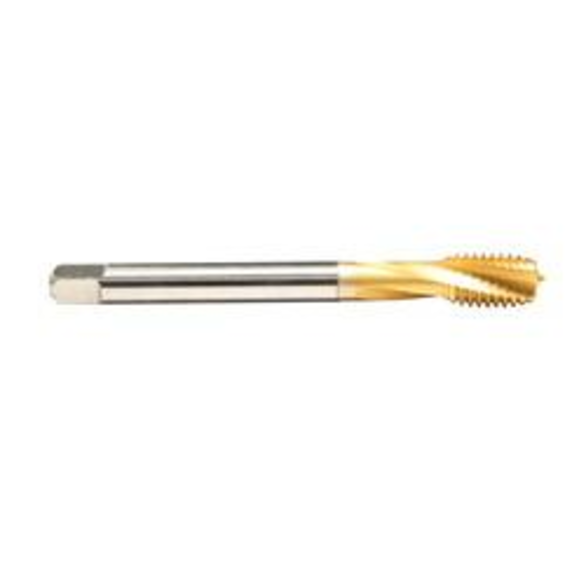

Emuge C0453701.0133 Rekord 2D-Z C0453701 Form C Reduced Shank Spiral Flute Tap, Right Hand Cutting, M33x3.5 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiN Coated, HSS-E
EMUGE C0453701.0133
$924.96
/ EA
Out of Stock
- Coolant Through: No
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 4
- Flute Direction: Right Hand
- Class of Fit: 6HX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length - Metric: 180 mm
- Series: Rekord 2D-Z C0453701
- Shank Diameter - Metric: 25 mm
- Shank Length - Metric: 140 mm
- Thread Length - Metric: 40 mm
- Thread Standard: Coarse
- Rekord D tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines
- Z designation for CNC controlled machine applications
- TiN coated for additional tool life
- DIN/DIN standard dimensions on overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Tap | Form C Reduced Shank | Series: Rekord 2D-Z C0453701 | Measurement System: Metric | Coarse | M33x3.5 | Modified Bottoming Chamfer | 4 Flutes | HSS-E | TiN Coated | Class of Fit: 6HX | Right Hand Cutting | 40 mm Thread Length | 180 mm Overall Length | 25 mm Shank Dia | 140 mm Shank Length | Right Hand Flute Direction
