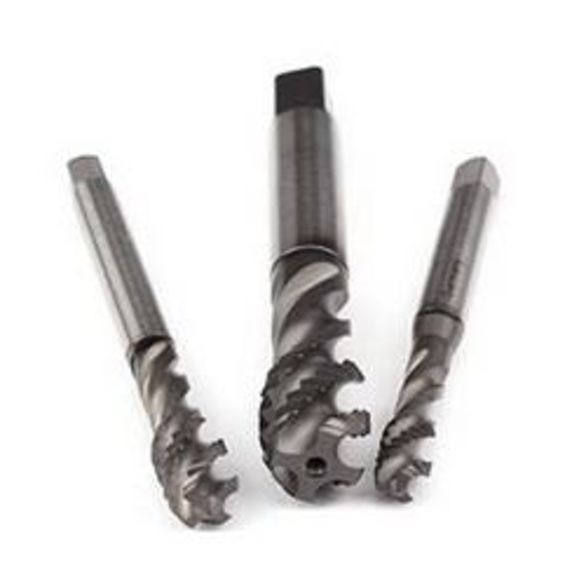

Emuge C050C400.0116 Enorm 2-Z C050C400 Form C Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, M16x2 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, GLT-1 Coated, HSS-E

• The fast spiral flute (45 deg) provides good chip removal from blind holes
• Z designates a tool design for CNC controlled machines with synchronous feed control
• GLT-1 coating - hard surface coating with anti-friction layer
• In a PVD process (500 deg C) a coating thickness of 2 to 4 um can be realized
• The combination of a hard surface coating (approximately 3000 HV) with an anti-friction top layer yields decisive tool life advantages
• Chip flow is also improved
• DIN/DIN standard dimensions for overall length and shank size

Standards/Approvals: DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

For blind hole threads in long chipping materials

Emuge Spiral Flute Tap | Form C Fast Reduced Shank | Series: Enorm 2-Z C050C400 | Measurement System: Metric | Coarse | M16x2 | Modified Bottoming Chamfer | 4 Flutes | HSS-E | GLT-1 Coated | Class of Fit: 6H | Right Hand Cutting | 27 mm Thread Length | 110 mm Overall Length | 12 mm Shank Dia | 88 mm Shank Length | Right Hand Flute Direction
