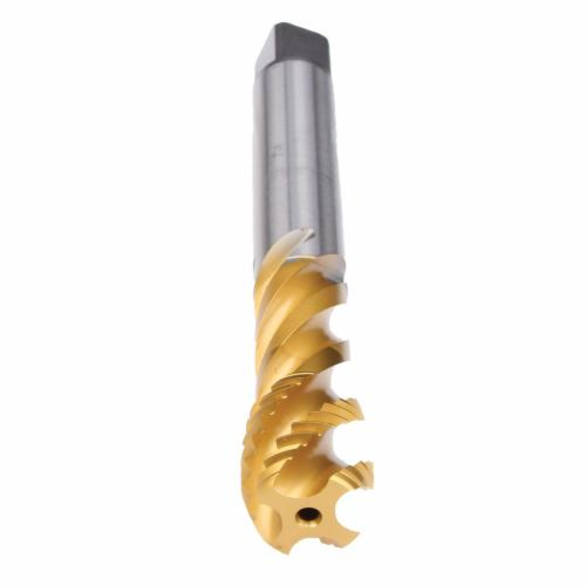

Emuge C3650F01.0331 Enorm 2-Z-SPEED X-IKZ-PM C3650F01 Form C Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, M14x1.5 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 5 Flutes, TiN 60 Coated, HSS-E-PM
EMUGE C3650F01.0331
$215.70
/ EA
Out of Stock
- Coolant Through: Yes
- Material: HSS-E-PM
- Finish/Coating: TiN 60 Coated
- Number of Flutes: 5
- Flute Direction: Right Hand
- Class of Fit: 6HX
- Chamfer Type: 2-3 Modified Bottoming Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 100 mm
- Series: Enorm 2-Z-SPEED X-IKZ-PM C3650F01
- Shank Diameter - Metric: 11 mm
- Thread Length - Metric: 15 mm
- Thread Standard: MF
- Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
- TiN coating provides additional wear-resistance and reduces cold welding
- 45 deg spiral flute design
- IKZ - axial coolant hole design
- DIN/DIN standard dimensions for overall length and shank size
- Replacement part for old tool C3553700.0331
Standards/Approvals: DIN 13|ISO Certified
For blind hole applications to pull the chips out of the hole
Emuge Spiral Flute Tap | Form C Fast Reduced Shank | Series: Enorm 2-Z-SPEED X-IKZ-PM C3650F01 | Measurement System: Metric | MF | M14x1.5 | 2-3 Modified Bottoming Plug Chamfer | 5 Flutes | HSS-E-PM | TiN 60 Coated | Class of Fit: 6HX | Right Hand Cutting | 15 mm Thread Length | 100 mm Overall Length | 11 mm Shank Dia | Right Hand Flute Direction | Steel Material Application
