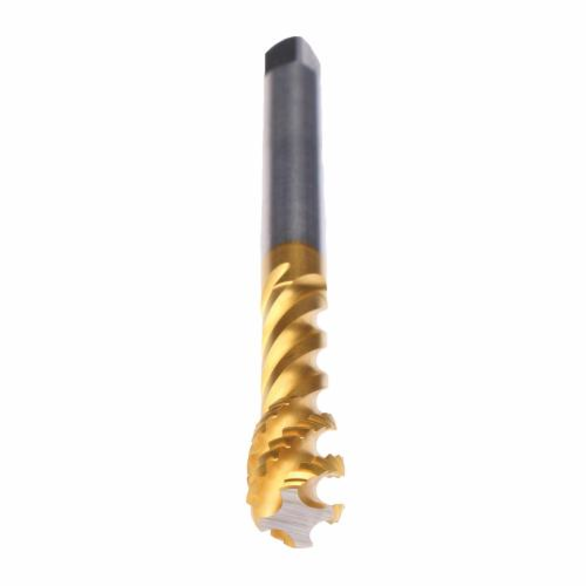

Emuge C5760F01.0112 Enorm 2-Z-X-PM C5760F01 Form E Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, M12x1.75 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, TiN 60 Coated, HSS-E-PM

• InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
• TiN coating provides additional wear-resistance and reduces cold welding
• The fast spiral flute (45 deg) provides good chip removal from blind holes
• Z designates a tool design for CNC controlled machines with synchronous feed control
• The Enorm Z design is typically for blind hole threads in long chipping materials
• TiN coated for additional tool life
• DIN/DIN standard dimensions for overall length and shank size
• Replacement part for old tool C4503700.0112

Standards/Approvals: DIN 13

For blind hole applications to pull the chips out of the hole

Emuge Spiral Flute Tap | Form E Fast Reduced Shank | Series: Enorm 2-Z-X-PM C5760F01 | Measurement System: Metric | M | M12x1.75 | 2-3 Modified Bottoming Plug Chamfer | HSS-E-PM | TiN 60 Coated | Class of Fit: 6HX | Right Hand Cutting | 18 mm Thread Length | 110 mm Overall Length | 18 mm Shank Dia | Right Hand Flute Direction | Aluminum Cast Alloys | Cast Iron | Copper Alloys | Pure Titanium | Stainless Steel and Steel Material Application
