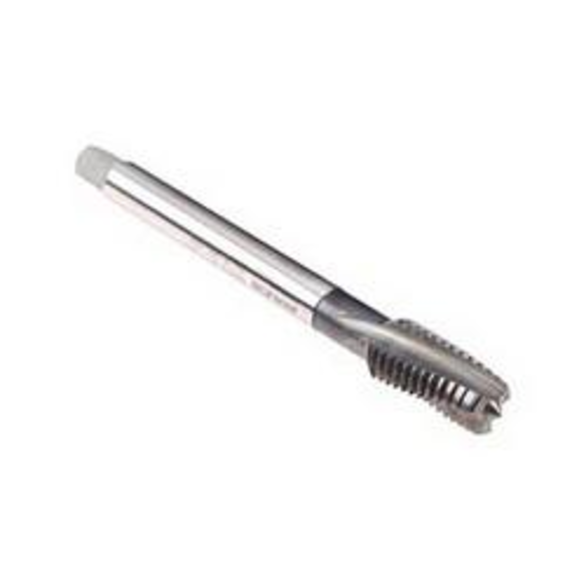

Emuge CU306001.5012 Rekord 2C-TI CU306001 Form D Reduced Shank Spiral Flute Tap, Left Hand Cutting, 7/16-14 Thread, Plug Chamfer, Left Hand Flute Direction, 3 Flutes, NT2 Coated, HSS-E
EMUGE CU306001.5012
$103.23
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 7/16-14
- Material: HSS-E
- Finish/Coating: NT2 Coated
- Number of Flutes: 3
- Flute Direction: Left Hand
- Class of Fit: 2BX
- Chamfer Type: Plug
- Overall Length: 3.937 in
- Series: Rekord 2C-TI CU306001
- Shank Diameter: 0.323 in
- Thread Length: 0.866 in
- Thread Standard: UNC
- NT2 nitride surface treatment for improved surface hardness
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications
Emuge Spiral Flute Tap | Form D Reduced Shank | Series: Rekord 2C-TI CU306001 | Measurement System: Imperial | UNC | 7/16-14 | Plug Chamfer | 3 Flutes | HSS-E | NT2 Coated | Class of Fit: 2BX | Left Hand Cutting | 0.866 in Thread Length | 3.937 in Overall Length | 0.323 in Shank Dia | Left Hand Flute Direction
