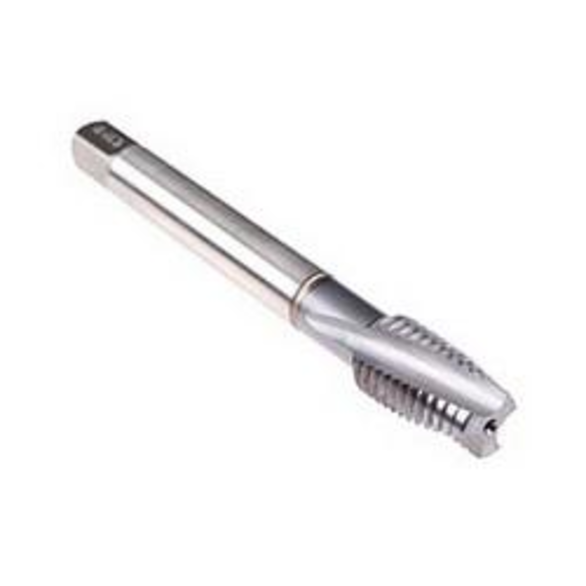

Emuge CU309600.5666 Rekord C-TI SELF-LOCK™ CU309600 Form D Reduced Shank Spiral Flute Tap, Left Hand Cutting, 1/2-13 Thread, Plug Chamfer, Left Hand Flute Direction, 4 Flutes, TiCN Coated, HSS-E
EMUGE CU309600.5666
$188.08
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1/2-13
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 4
- Flute Direction: Left Hand
- Class of Fit: BT
- Chamfer Type: Plug
- Series: Rekord C-TI SELF-LOCK™ CU309600
- Shank Diameter: 0.367 in
- Thread Standard: LK-UNC
- Overall Length: 4.331 in
- Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials
- TiCN coated for wear resistance and additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole applications
Emuge Spiral Flute Tap | Form D Reduced Shank | Series: Rekord C-TI SELF-LOCK CU309600 | Measurement System: Imperial | LK-UNC | 1/2-13 | Plug Chamfer | 4 Flutes | HSS-E | TiCN Coated | Class of Fit: BT | Left Hand Cutting | 4.331 in Overall Length | 0.367 in Shank Dia | Left Hand Flute Direction
