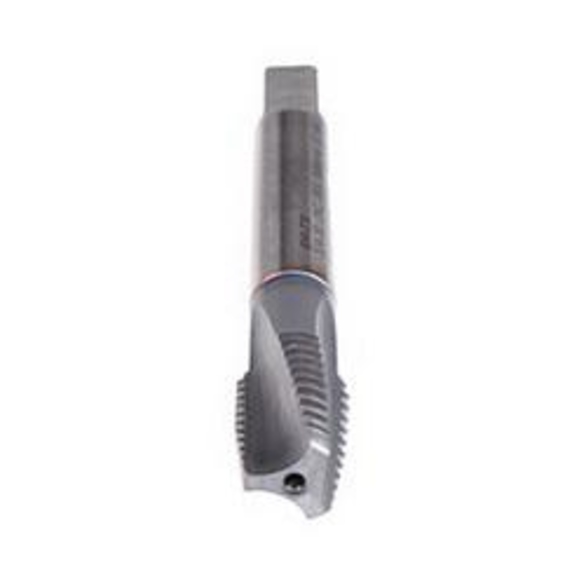

Emuge CU30J411.5050 Rekord 2C-NI CU30J411 Form D Reduced Shank Slow Helix Spiral Flute Tap, Left Hand Cutting, 3/4-16 Thread, Plug Chamfer, Left Hand Flute Direction, 4 Flutes, TiCN Coated, HSS-E
EMUGE CU30J411.5050
$297.75
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 3/4-16
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 4
- Flute Direction: Left Hand
- Class of Fit: 3BX
- Chamfer Type: Plug
- Overall Length: 4.331 in
- Series: Rekord 2C-NI CU30J411
- Shank Diameter: 0.59 in
- Shank Length: 3.347 in
- Thread Length: 0.984 in
- Thread Standard: UNF
- Rekord C-NI plug style taps with advanced left hand helical flute form and chamfer geometry combine to optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security
- TiCN coated for wear resistance and additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For through hole threading applications
Emuge Spiral Flute Tap | Form D Reduced Shank Slow Helix | Series: Rekord 2C-NI CU30J411 | Measurement System: Imperial | UNF | 3/4-16 | Plug Chamfer | 4 Flutes | HSS-E | TiCN Coated | Class of Fit: 3BX | Left Hand Cutting | 0.984 in Thread Length | 4.331 in Overall Length | 0.59 in Shank Dia | 3.347 in Shank Length | Left Hand Flute Direction
