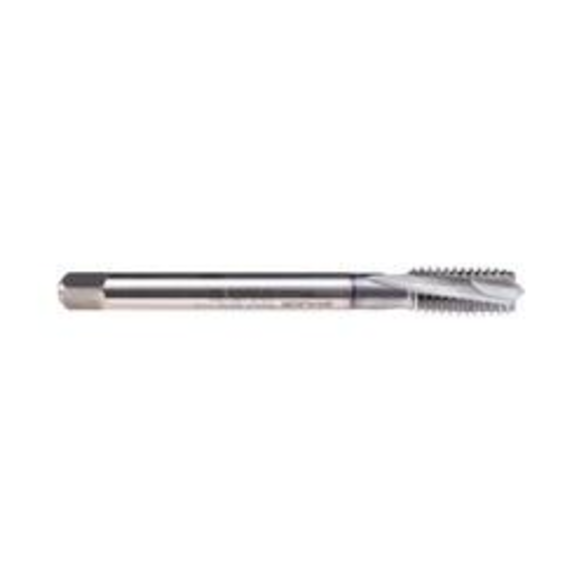

Emuge CU35J411.5047 Rekord 2DF-NI CU35J411 Form C Reduced Shank Slow Helix Spiral Flute Tap, Right Hand Cutting, 1/2-20 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-E
EMUGE CU35J411.5047
$170.57
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1/2-20
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 3BX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.937 in
- Series: Rekord 2DF-NI CU35J411
- Shank Diameter: 0.367 in
- Shank Diameter - Metric: 19.05 mm
- Shank Length: 3.071 in
- Thread Length: 0.866 in
- Thread Standard: UNF
- Rekord DF-NI semi-bottoming taps with VHC - variable helix correction
- A specially ground F relief geometry in the primary cutting zone, that generates a smaller and tightly rolled chip formation
- The resulting benefit is enhanced chip control to prevent the damaging effects of chips jamming in the tap teeth on both forward and reverse
- TiCN coated for wear resistance and additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole applications
Emuge Spiral Flute Tap | Form C Reduced Shank Slow Helix | Series: Rekord 2DF-NI CU35J411 | Measurement System: Imperial | UNF | 1/2-20 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiCN Coated | Class of Fit: 3BX | Right Hand Cutting | 0.866 in Thread Length | 3.937 in Overall Length | 0.367 in Shank Dia | 3.071 in Shank Length | Right Hand Flute Direction
