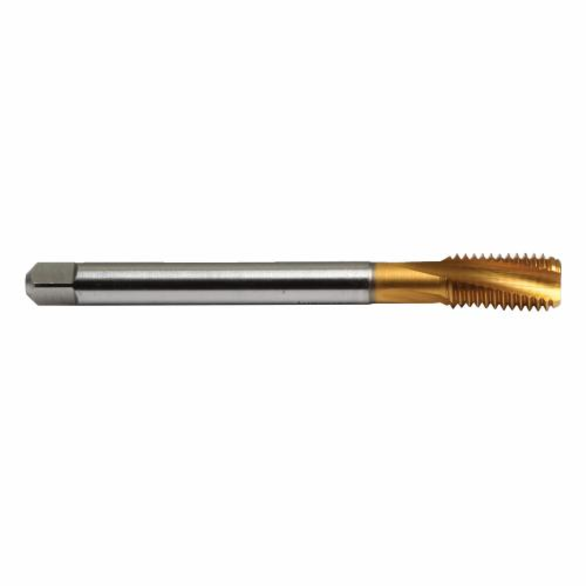

Emuge CU451400.5018 Rekord 2D-STEEL CU451400 Form C Reduced Shank Slow Spiral Flute Tap, Right Hand Cutting, 1-8 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE CU451400.5018
$325.98
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1-8
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2B
- Chamfer Type: 2-3 Modified Bottoming Plug
- Cutting Direction: Right Hand
- Overall Length: 6.299 in
- Series: Rekord 2D-STEEL CU451400
- Shank Diameter: 0.8 in
- Thread Length: 1.417 in
- Thread Standard: UNC
- Taps with the STEEL designation are well suited for low tensile, alloyed, mild steel and long chipping materials
- The Rekord D geometry excels in horizontal applications
- TiN coating provides additional wear-resistance and reduces cold welding
- 15 deg right hand spiral flute
- DIN/ANSI taps made with Emuge's trademark long shanks DIN length for extra reach and ANSI shanks
- Replacement part for old tool CU453000.5018
Standards/Approvals: ASME B1.1|ANSI Specified|DIN 371, 376
For blind hole, especially automatic lathes and multi-spindle machines
Emuge Spiral Flute Tap | Form C Reduced Shank Slow | Series: Rekord 2D-STEEL CU451400 | Measurement System: Imperial | UNC | 1-8 | 2-3 Modified Bottoming Plug Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 2B | Right Hand Cutting | 1.417 in Thread Length | 6.299 in Overall Length | 0.8 in Shank Dia | Right Hand Flute Direction | Aluminum Alloys | Cast Iron | Copper Alloys | Malleable Cast Iron and Steel Material Application
