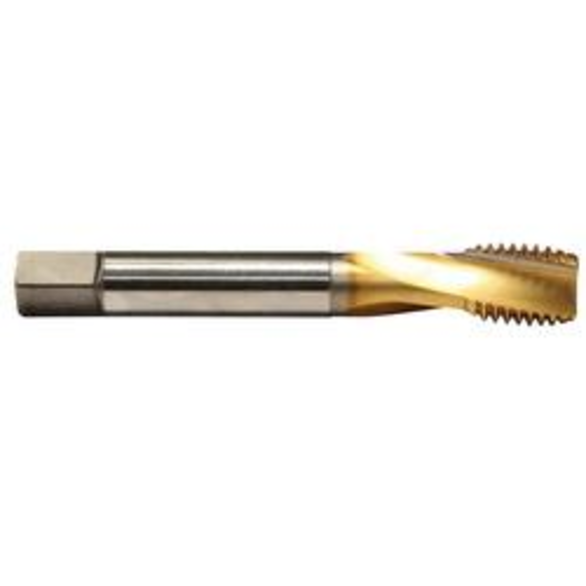

Emuge CU583701.5012 Rekord 2D-Z-BF IKZ CU583701 Form C Reduced Shank Chipbreaker Tap, Right Hand Cutting, 7/16-14 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
EMUGE CU583701.5012
$155.29
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: 7/16-14
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2BX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.937 in
- Series: Rekord 2D-Z-BF IKZ CU583701
- Shank Diameter: 0.323 in
- Shank Length: 3.071 in
- Thread Length: 0.866 in
- Thread Standard: UNC
- Rekord D-Z-BF tap with CBTz geometry is a slow spiral design for blind holes, especially CNC machines with synchronous feed control
- BF bright face chamfer grind helps ensure short chip formation
- IKZ - axial coolant hole design for optimum chip evacuation
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For long chipping materials
Emuge Chipbreaker Tap | Form C Reduced Shank | Series: Rekord 2D-Z-BF IKZ CU583701 | Measurement System: Imperial | UNC | 7/16-14 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 2BX | Right Hand Cutting | 0.866 in Thread Length | 3.937 in Overall Length | 0.323 in Shank Dia | 3.071 in Shank Length | Right Hand Flute Direction
