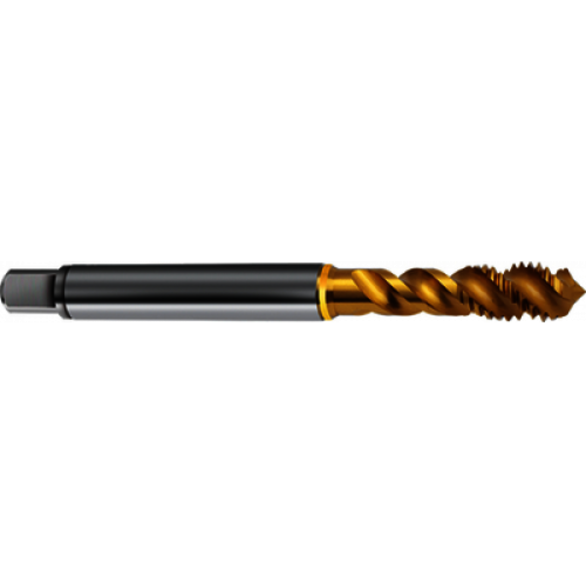

Guhring 9057220030000 M3 X 0.50, Modified Bottoming, Right Hand, Spiral Flute Tap
GUH 9057220030000
$35.23
/ EA
Out of Stock
- Material: HSS-E-PM
- Helix Angle: 50 Degree
- Overall Length: 2.2047 in
- Shank Diameter - Decimal: 0.1378 in
- Shank Diameter - Metric: 3.50 mm
- Thread Length: 0.2362 in
- Thread Standard: Metric
- Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads
- Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Standard/Approvals:DIN 371 / 376
Guhring 9057220030000 M3 X 0.50 | Modified Bottoming | Right Hand | 6H | D3 | Spiral Flute Tap
