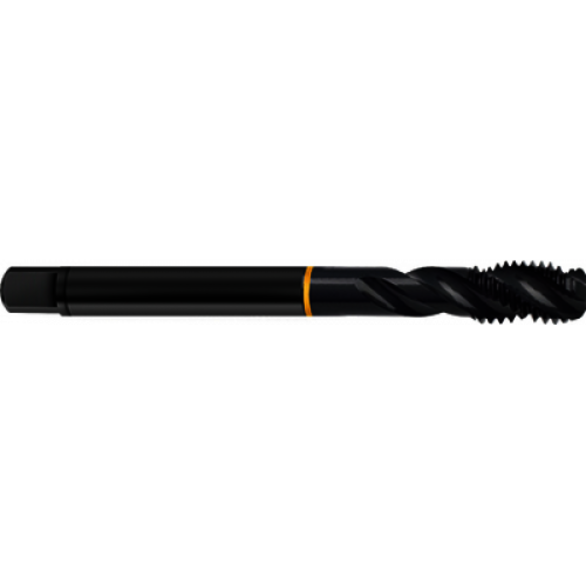

Guhring 9057240040030 M4 X 0.50, Modified Bottoming, Right Hand, Spiral Flute Tap
GUH 9057240040030
$24.53
/ EA
Out of Stock
- Material: HSS-E-PM
- Helix Angle: 40 Degree
- Overall Length: 2.4803 in
- Shank Diameter - Decimal: 0.1102 in
- Shank Diameter - Metric: 2.80 mm
- Thread Length: 0.1969 in
- Thread Standard: Metric Fine
- Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Standard/Approvals:DIN 374
Guhring 9057240040030 M4 X 0.50 | Modified Bottoming | Right Hand | 6H | D4 | Spiral Flute Tap
