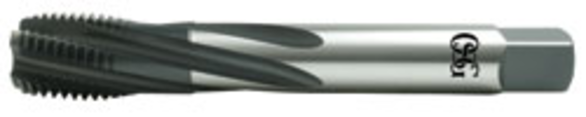

OSG 1301403001 1-12, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1301403001
$206.46
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1-12
- Material: HSSE
- Finish/Coating: Steam Oxide
- Number of Flutes: 5
- Class of Fit: 2B
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Helix Angle: 15 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Imperial
- Overall Length: 5.51 in
- Overall Length - Decimal: 5.51 mm
- Series: 13014
- Shank Diameter - Decimal: 0.8 in
- Shank Length - Fractional: 3-1/2 in
- Size: 1
- Thread Length: 0.665 in
- Thread Standard: UNF
HY-PRO® HXL Taps Horizontal Tapping Solutions for the Oil & Gas IndustryLineup
OSG 1301403001 1-12 | 2.5P - 3P | Right Hand | 2B | Spiral Flute Tap
