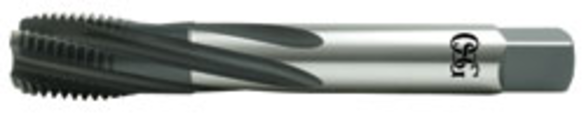

OSG 1302400501 3/4-10, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1302400501
$209.43
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: 3/4-10
- Material: HSSE
- Finish/Coating: Steam Oxide
- Number of Flutes: 4
- Class of Fit: 2B
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Helix Angle: 15 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Imperial
- Overall Length: 4.92 in
- Overall Length - Decimal: 4.92 mm
- Series: 13024
- Shank Diameter - Decimal: 0.59 in
- Shank Length - Fractional: 4-3/32 in
- Size: 3/4
- Thread Length: 0.799 in
- Thread Standard: UNC
HY-PRO® HXL-OIL Taps Horizontal Tapping Solutions for the Oil & Gas Industry
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece.
Application: It is commonly used on low carbons, stainless steel and ferrous metals.
OSG 1302400501 3/4-10 | 2.5P - 3P | Right Hand | 2B | Spiral Flute Tap
