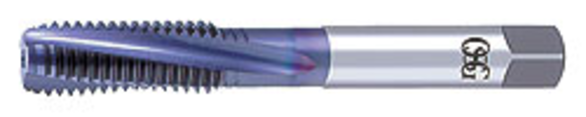

OSG 1305712308 3/8-24, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1305712308
$63.48
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 3/8-24
- Material: VC-10
- Finish/Coating: V-Coated
- Number of Flutes: 3
- Thread Limit: H3
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 10 Degree
- Material Application: Alloy Steel, Hardened Steel, Heat-Resistant Super Alloy, Inconel Nickel Alloy, Stainless Steel and Titanium
- Measurement System: Imperial
- Overall Length: 2-15/16 in
- Overall Length - Decimal: 2.93 mm
- Series: 313TI
- Shank Diameter - Decimal: 0.38 in
- Shank Length: 1-21/32 in
- Shank Length - Fractional: 1-21/32 in
- Size: 3/8
- Thread Length: 1-1/4 in
- Thread Standard: UNF
EXOTAP® VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.
- Premium Powdered Metal VC-10 substrate Increased hardness for longer life
- Spiral Flute For through hole applications
- OSG V-coating Increased hardness, lubricity & wear resistance
- DIN Overall Length Provides greater reach capability
- Inch & Metric Complete Offering
Application: Titanium, High Nickel AlloyAlloy Steels, SS 17-4PH, Hardened Steels up to 45 HrCAerospace, Medical
OSG 1305712308 3/8-24 | 2.5P - 3P | Right Hand | 3B | H3 | Spiral Flute Tap
