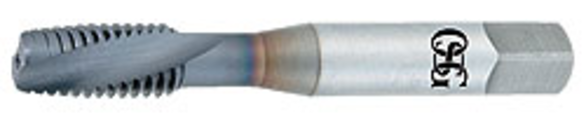

OSG 1305900808 5/16-24, 5.5P - 6.5P, Right Hand, Spiral Flute Tap
OSG 1305900808
$30.91
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 5/16-24
- Material: HSSE
- Finish/Coating: V-Coated
- Number of Flutes: 2
- Class of Fit: 2B
- Chamfer Type: 5.5P-6.5P Plug
- Cutting Direction: Right Hand
- Helix Angle: 20 Degree
- Material Application: Aluminum and Cast Aluminum
- Measurement System: Imperial
- Overall Length: 2-23/32 in
- Overall Length - Decimal: 2.72 mm
- Series: 13059
- Shank Diameter - Decimal: 0.317 in
- Shank Length: 1-19/32 in
- Shank Length - Fractional: 1-19/32 in
- Size: 5/16
- Thread Length: 0.665 in
- Thread Standard: UNF
- Finish: TiCN
HY-PRO® SYNCHRO AL is a premium spiral flute tap for synchronized tapping through holes in Alloy and Cast Aluminum.
- HSSE material Increased wear resistance
- Left Hand Spiral For through hole applications
- OSG V-coating Increased hardness, lubricity & wear resistance
- Extra Thread Relief Eliiminates friction to enable High Speed tapping
- Inch & Metric Complete Offering.
Application: Aluminum alloys, Cast AluminumIdeal for synchronized tapping centers.High Speed Tapping
OSG 1305900808 5/16-24 | 5.5P - 6.5P | Right Hand | 3B | 2B | Spiral Flute Tap
