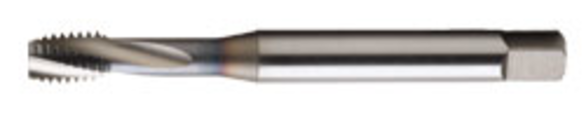

OSG 1311301808 M20x1.50, 1.5P - 2P, Right Hand, Spiral Flute Tap
OSG 1311301808
$275.41
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: M20-1.5
- Material: HSSE
- Finish/Coating: V-Coated
- Number of Flutes: 4
- Class of Fit: 6H
- Chamfer Type: 1.5P-2P Bottoming
- Cutting Direction: Right Hand
- Finish: V Coating
- Helix Angle: 15 Degree
- Material Application: Alloy Steel, Cast Aluminum, Cast Iron, Die Steel, Hardened Steel and High Carbon Steel
- Measurement System: Metric
- Overall Length - Metric: 125 mm
- Series: 13113
- Shank Diameter - Decimal: 16.56 mm
- Shank Length - Metric: 63 mm
- Size: M20
- Thread Length: 16.00 mm
- Thread Length - Metric: 16 mm
- Thread Standard: Metric Fine
HY-PRO® ALLOY Taps High Performance Spiral Flute Taps for Alloy Steels.
- Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN.
Application: It is commonly used on stainless steels, cast iron and aluminum alloys.
OSG 1311301808 M20x1.50 | 1.5P - 2P | Right Hand | 6H | Spiral Flute Tap
