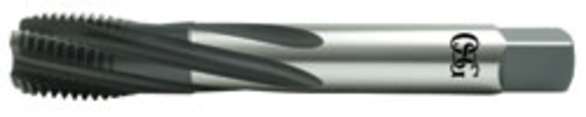

OSG 1312601901 M30x3.50, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1312601901
$481.24
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: M30-3.5
- Material: HSSE
- Finish/Coating: Steam Oxide
- Number of Flutes: 5
- Thread Limit: D20
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Helix Angle: 15 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Metric
- Overall Length: 180 mm
- Overall Length - Metric: 180 mm
- Series: 13126
- Shank Diameter - Decimal: 25.93 mm
- Shank Length - Metric: 77 mm
- Size: M30
- Thread Length: 2-9/16 in
- Thread Length - Metric: 28 mm
- Thread Standard: Metric Coarse
HY-PRO® HXL-W-OIL Taps Horizontal Tapping Solutions for the Wind Energy Industry
- Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece.
Application: It is commonly used on low carbons, stainless steel and ferrous metals.
OSG 1312601901 M30x3.50 | 2.5P - 3P | Right Hand | 6H+0.005 | D20 | Spiral Flute Tap
