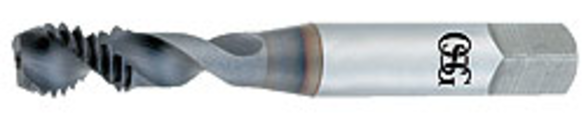

OSG 1315800808 M12x1.50, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1315800808
$62.19
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M12-1.5
- Material: HSSE
- Finish/Coating: V-Coated
- Number of Flutes: 2
- Class of Fit: 6H
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 45 Degree
- Material Application: Aluminum and Cast Aluminum
- Measurement System: Metric
- Overall Length: 3-3/8 in
- Overall Length - Metric: 85 mm
- Series: 13158
- Shank Diameter - Decimal: 9.32 mm
- Shank Length - Metric: 36 mm
- Size: M12
- Thread Length - Metric: 14 mm
- Thread Standard: Metric Fine
- Thread Length: 1-21/32 in
- Finish: TiCN
HY-PRO® SYNCHRO AL is a premium spiral flute tap for synchronized tapping Alloy and Cast Aluminum.
- HSSE material Increased wear resistance
- Spiral Flute For blind hole applications
- TiCN coating TiN improves wear resistance for extended tap life
- Extra Thread Relief Eliiminates friction to enable High Speed tapping.
Application: It is commonly used on stainless steels, cast iron and aluminum alloys.
OSG 1315800808 M12x1.50 | 2.5P - 3P | Right Hand | 6H | D6 | Spiral Flute Tap
