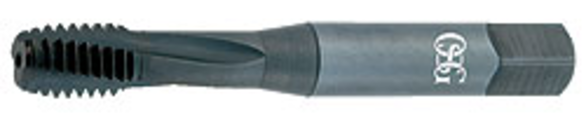

OSG 1706208 M12x1.75, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1706208
$88.79
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M12-1.75
- Material: VC-10
- Finish/Coating: V-Coated
- Number of Flutes: 3
- Thread Limit: D6
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 15 Degree
- Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium
- Measurement System: Metric
- Overall Length: 85 mm
- Overall Length - Metric: 85 mm
- Series: 345
- Shank Diameter - Decimal: 9.32 mm
- Shank Length: 36.00 mm
- Shank Length - Metric: 36 mm
- Size: M12
- Thread Length: 14.00 mm
- Thread Length - Metric: 14 mm
- Thread Standard: Metric Coarse
EXOTAP® VC-10 is the premium solution for tapping in difficult to machine materials.
- Premium Powdered Metal VC-10 substrate
- Increased hardness for longer life
- Spiral Flute
- For blind hole applications
- Steam Oxide surface treatment
- S/O increases mechanical lubricity
- OSG V-coating
- Increased hardness, lubricity & wear resistance
- Inch & Metric
- Complete Offering
Application: Alloy Steels, SS 17-4PH, Hardened Steel ~35HrCDie Steels, Titanium, Inconel, SS 400, Hardened Steel 35-45 HrC Aerospace, Medical, Oil & Gas
OSG 1706208 M12x1.75 | 2.5P - 3P | Right Hand | D6 | D6 | Spiral Flute Tap
