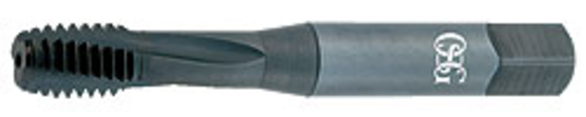

EXOTAP® 1754901 313 High Performance Spiral Flute Tap, Right Hand Cutting, #8-32 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 2 Flutes, Steam Oxide, VC-10
OSG 1754901
$32.97
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: #8-32
- Material: VC-10
- Finish/Coating: Steam Oxide
- Number of Flutes: 2
- Flute Direction: Right Hand
- Class of Fit: H6
- Thread Limit: H6
- Chamfer Type: Semi-Bottoming
- Cutting Direction: Right Hand
- Material Application: Alloy Steels, Hardened Steel, Die Steels, Titanium and Inconel
- Measurement System: Imperial
- Overall Length - Fractional: 2-1/8 in
- Series: 313
- Thread Standard: UNC
- Overall Length: 2.125 in
- Flute Type: Spiral
- Shank Diameter - Decimal: 0.168 in
- Suitable for difficult to machine materials
- Increased hardness for longer life
- S/O increases mechanical lubricity
- Increased hardness, lubricity and wear resistance
- Premium powdered metal VC-10 substrate
Standards/Approvals: ANSI Specified
Aerospace, Medical, Oil and Gas
EXOTAP Spiral Flute Tap | High Performance | Series: 313 | Measurement System: Imperial | UNC | #8-32 | Semi-Bottoming Chamfer | 2 Flutes | VC-10 | Steam Oxide | Class of Fit: H6 | Right Hand Cutting | 3/4 in Thread Length | 2-1/8 in Overall Length | 0.168 in Shank Dia | Right Hand Flute Direction
