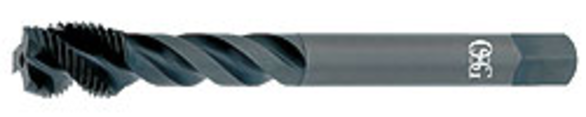

OSG 2247601 1-1/8-8, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 2247601
$444.00
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 1-1/8-8
- Material: HSSE
- Finish/Coating: Steam Oxide
- Number of Flutes: 4
- Class of Fit: 2B
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Helix Angle: 45 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Imperial
- Overall Length: 7.866 in
- Overall Length - Decimal: 7.08 mm
- Series: 220
- Shank Diameter - Decimal: 0.895 in
- Shank Length - Fractional: 3-1/8 in
- Size: 1-1/8
- Thread Length: 1.141 in
- Thread Standard: UN
HY-PRO® DIN is the original "Do it All" premium spiral flute tap for a wide range of materials
- HSSE material Increased wear resistance
- Spiral Flute For blind hole applications
- Steam Oxide surface treatment S/O increases mechanical lubricity
- DIN overall length Provides greater reach capability
- Inch & Metric Complete Offering
Application: They are used for threading blind holes and have 2 to 2-1/2 threads. It is commonly used on low carbons, stainless steel and ferrous metals.
OSG 2247601 1-1/8-8 | 2.5P - 3P | Right Hand | 2B | Spiral Flute Tap
