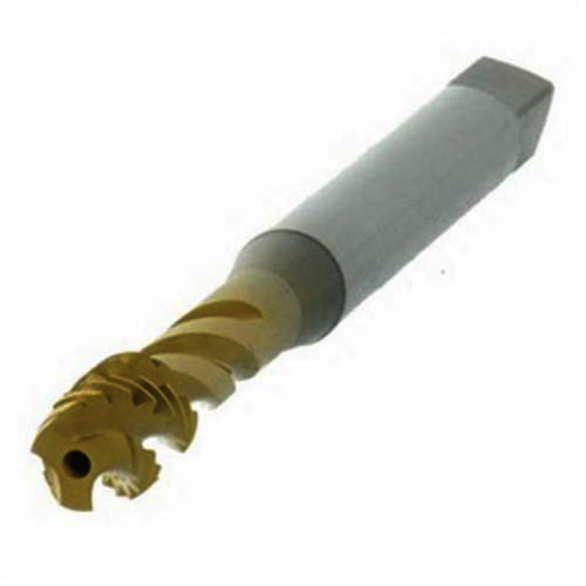

HY-PRO® 2391705 Spiral Flute Tap, Right Hand Cutting, M10x1.25 Thread, D10 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E
OSG 2391705
$95.04
/ EA
Out of Stock
- Coolant Through: Yes
- Material: HSS-E
- Finish/Coating: TiN Coated
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 6H
- Thread Limit: D10
- Chamfer Type: Semi-Bottoming
- Cutting Direction: Right Hand
- Material Application: High Carbon Steel, Alloy Steel, Die Steel, Cast Iron, Carbon Steels, Die Steels, Stainless Steels and Hardened Steel
- Measurement System: Metric
- Overall Length: 100 mm
- Overall Length - Metric: 100 mm
- Series: 239
- Shank Diameter - Decimal: 0.381 in
- Thread Standard: UNF
- Flute Type: Spiral
- Pitch: 1.25 mm
- Finish: TiN
- Increased wear resistance
- Improves wear resistance for extended tap life
- Provides greater reach capability
- Improved chip evacuation and heat control extends tap life
Standards/Approvals: DIN Rated
For threading blind hole applications
HY-PRO Spiral Flute Tap | Series: 239 | Measurement System: Metric | UNF | M10x1.25 | Semi-Bottoming Chamfer | 3 Flutes | HSS-E | TiN Coated | Class of Fit: 6H | Right Hand Cutting | 1-1/4 in Thread Length | 100 mm Overall Length | 0.381 in Shank Dia | Right Hand Flute Direction
