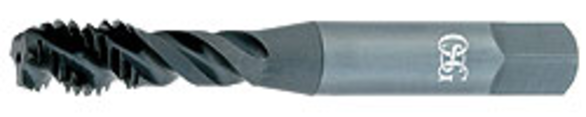

OSG 2984501 #3-48, 1.5P - 2P, Right Hand, Spiral Flute Tap
OSG 2984501
$18.10
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: 3-48
- Material: HSS
- Finish/Coating: Steam Oxide
- Number of Flutes: 2
- Class of Fit: 2B
- Chamfer Type: 1.5P-2P Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 50 Degree
- Material Application: Aluminum Alloy, Cast Aluminum and Low/Medium Carbon Steel
- Measurement System: Imperial
- Overall Length - Fractional: 1-13/16 in
- Series: 297
- Shank Diameter - Decimal: 0.141 in
- Shank Length - Fractional: 1-5/16 in
- Size: #3
- Thread Length: 1/2 in
- Thread Standard: UNC
- Overall Length: 1-13/16 in
HY-PRO® SEVEN is a premium spiral flute tap for a wide range of materials.
- HSS material
- Increased wear resistance
- Spiral Flute
- For blind hole applications
- Bright, Steam Oxide surface treatment
- S/O increases mechanical lubricity
- TiCN coating
- Improves wear resistance for extended tap life
- Slow spiral
- Efficient chip evacuation
- 2B & 6H Class of Fits
- Eliminates guess work associated with H and D limits.
Application:Low & Med Carbon SteelsAluminum Alloy, Cast Aluminum
OSG 2984501 #3-48 | 1.5P - 2P | Right Hand | 2B | Spiral Flute Tap
