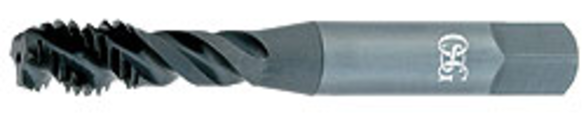

OSG 2991400, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 2991400
$34.64
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M8-1.25
- Material: HSSE
- Finish/Coating: Bright
- Number of Flutes: 3
- Thread Limit: D5
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Helix Angle: 45 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Metric
- Overall Length: 2-23/32 in
- Overall Length - Metric: 69 mm
- Series: 299
- Shank Diameter - Decimal: 8.07 mm
- Shank Diameter - Metric: 8.07 mm
- Shank Length - Metric: 40 mm
- Size: M8
- Thread Length - Metric: 10 mm
- Thread Standard: Metric Coarse
- Thread Length: 1-1/8 in
- Finish: Bright
HY-PRO® is the original "Do it All" premium spiral flute tap for a wide range of materials.
- HSSE material Increased wear resistance
- Spiral Flute For blind hole applications
- Bright, Steam Oxide surface treatment S/O increases mechanical lubricity
- TiCN coating Improves wear resistance for extended tap life
- Slow spiral Efficient chip evacuation
- Inch & Metric Complete Offering.
Application:Medium to High Carbon Steels, Alloy SteelsCast iron, Carbon Steels, Die Steels, Stainless Steels, Hardened Steel ~35 HrC
OSG 2991400 | 2.5P - 3P | Right Hand | 6H | D5 | Spiral Flute Tap
