Walter Tools

Walter 5348688 AS2351005-UNF5/16 HSS Machine Tap

PROTYP 5348688
$121.31 / EA
Out of Stock

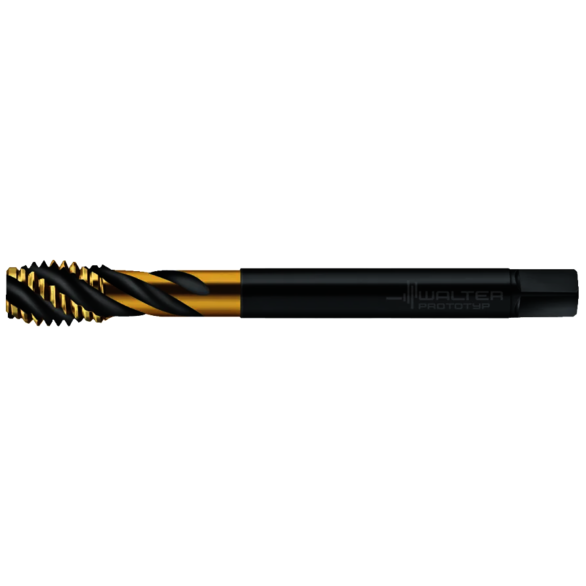

Image for PROTYP 5348688
  • Chip Flute Length: 1.18 in
  • Helix Angle: 40 deg
  • Overall Length: 93.45 mm
  • Pre Machined Hole Diameter - Decimal: 0.272 in
  • Pre Machined Hole Diameter - Metric: 6.908 mm
  • Series: AS2351005
  • Thread Diameter - Fractional: 5/16 in
  • Thread Form Type: UNF
  • Thread Length: 0.433 in
  • Thread Series: AS2351005
  • Thread Type: Internal
  • Threads per Inch: 24
  • Tool Material: High Speed Steel
  • Taper Thread Count: 3
  • Shank Diameter - Metric: 8.077 mm
  • Shank Diameter - Decimal: 0.318 in
Standards:

DIN/ANSI

Applications:

Cast Iron, Stainless Steel, Steel
