Walter Tools

PROTYP 6149735 M3 Thread, 0.709 in Useable L, 0.02 in Pitch, Spiral Flute Taps

PROTYP 6149735
$59.25 / EA
Out of Stock

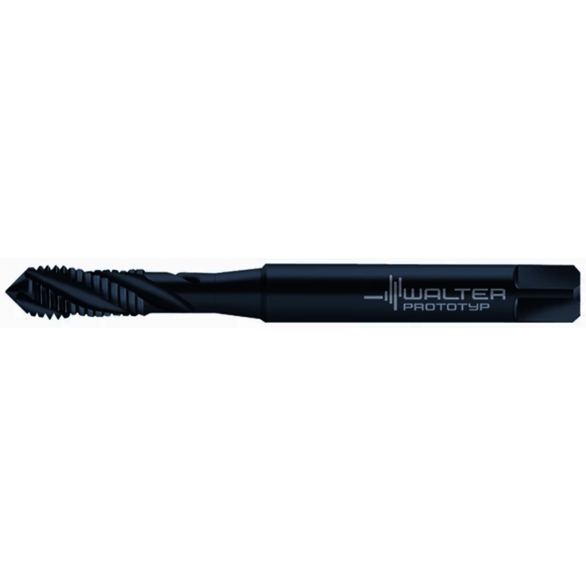

Image for PROTYP 6149735
  • Thread Size: M3
  • Chip Flute Length: 0.63 in
  • Clamping Width: 0.106 in
  • Cutting Edge Length: 0.236 in
  • Functional Length: 2.205 in
  • Helix Angle: 40 deg
  • Overall Length: 2.254 in
  • Pitch: 0.02 in
  • Pre Machined Hole Diameter - Decimal: 0.098 in
  • Pre Machined Hole Diameter - Metric: 2.489 mm
  • Shank Diameter: 0.138 in
  • Shank Diameter - Decimal: 0.138 in
  • Shank Diameter - Metric: 3.505 mm
  • Thread Length: 0.236 in
  • Thread Series: X-pert
  • Thread Type: Internal
  • Taper Thread Count: 2
  • Tool Material: High Speed Steel
  • Thread Form Type: M
Standards:

DIN 371

Applications:

Stainless Steel
