Walter Tools

PROTYP 6149802 M36 Thread, 5.157 in Useable L, 0.157 in Pitch, Spiral Flute Taps

PROTYP 6149802
$704.51 / EA
Out of Stock

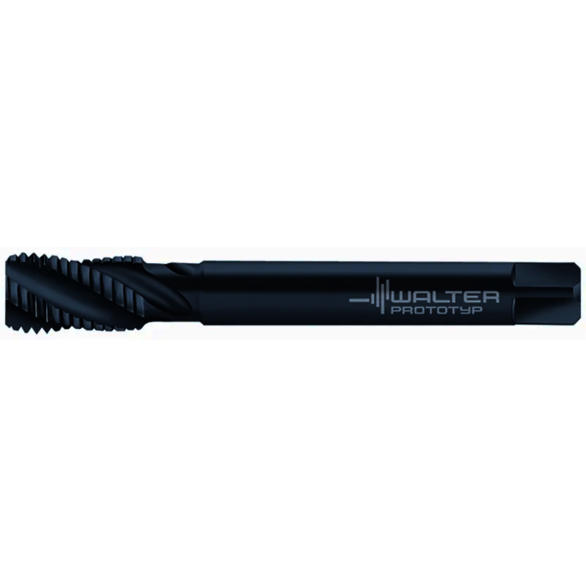

Image for PROTYP 6149802
  • Thread Size: M36
  • Chip Flute Length: 3.46 in
  • Clamping Width: 0.866 in
  • Cutting Edge Length: 1.575 in
  • Functional Length: 7.874 in
  • Helix Angle: 40 deg
  • Overall Length: 7.874 in
  • Pitch: 0.157 in
  • Pre Machined Hole Diameter - Decimal: 1.26 in
  • Pre Machined Hole Diameter - Metric: 32 mm
  • Shank Diameter: 1.102 in
  • Shank Diameter - Decimal: 1.102 in
  • Shank Diameter - Metric: 27.99 mm
  • Thread Form Type: M
  • Thread Length: 1.575 in
  • Thread Series: X-pert
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 3
Standards:

DIN 376

Applications:

Stainless Steel
