Walter Tools

PROTYP 6149858 M6x0.75 Thread, 1.181 in Useable L, 0.03 in Pitch, Spiral Flute Taps

PROTYP 6149858
$78.27 / EA
Out of Stock

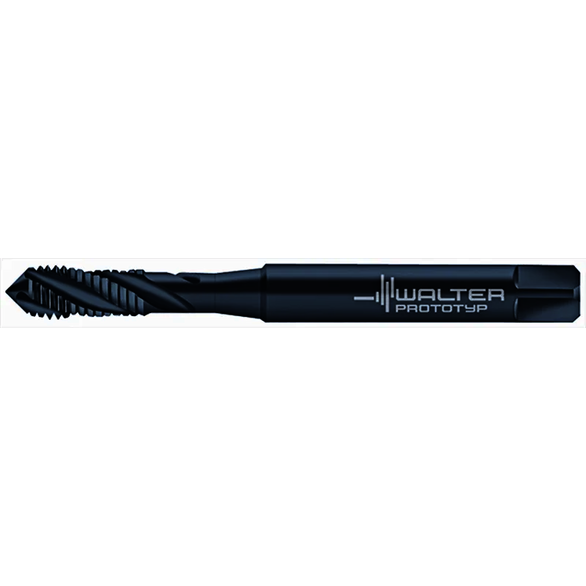

Image for PROTYP 6149858
  • Thread Size: M6x0.75
  • Chip Flute Length: 1.02 in
  • Clamping Width: 0.193 in
  • Cutting Edge Length: 0.394 in
  • Driving Square Length: 0.315 in
  • Functional Length: 3.15 in
  • Helix Angle: 40 deg
  • Overall Length: 3.205 in
  • Pitch: 0.03 in
  • Pre Machined Hole Diameter - Decimal: 0.207 in
  • Pre Machined Hole Diameter - Metric: 5.257 mm
  • Shank Diameter: 0.236 in
  • Thread Form Type: MF
  • Thread Length: 0.394 in
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 3
  • Shank Diameter - Metric: 5.994 mm
  • Thread Series: X-pert
  • Shank Diameter - Decimal: 0.236 in
Standards:

DIN 371

Applications:

Stainless Steel
