PROTYP 6149863 M8x0.75 Thread, 2.244 in Useable L, 0.03 in Pitch, Spiral Flute Taps

PROTYP 6149863
$93.20 / EA
Out of Stock

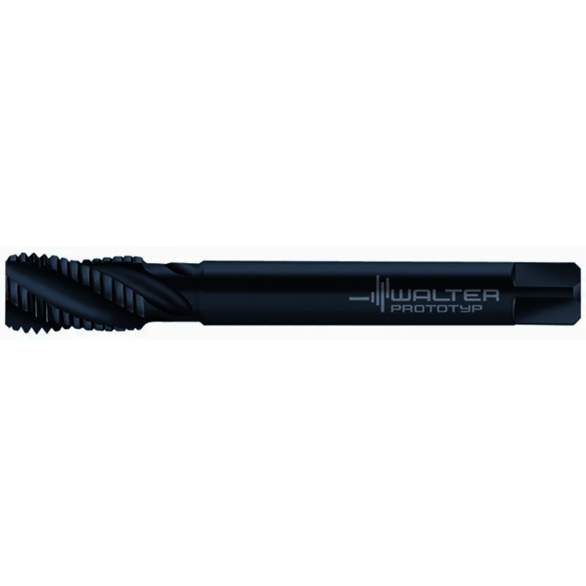

Image for PROTYP 6149863
  • Chip Flute Length: 1.18 in
  • Clamping Width: 0.193 in
  • Cutting Edge Length: 0.394 in
  • Driving Square Length: 0.315 in
  • Functional Length: 3.15 in
  • Helix Angle: 40 deg
  • Overall Length: 3.211 in
  • Pitch: 0.03 in
  • Pre Machined Hole Diameter - Decimal: 0.285 in
  • Pre Machined Hole Diameter - Metric: 7.239 mm
  • Shank Diameter: 0.236 in
  • Thread Form Type: MF
  • Thread Length: 0.394 in
  • Thread Series: X-pert
  • Thread Type: Internal
  • Taper Thread Count: 3
  • Shank Diameter - Metric: 5.994 mm
  • Tool Material: High Speed Steel
  • Shank Diameter - Decimal: 0.236 in
Standards:

DIN 374

Applications:

Stainless Steel
