Walter Tools

PROTYP 6149871 M12x1.5 Thread, 2.874 in Useable L, 0.059 in Pitch, Spiral Flute Taps

PROTYP 6149871
$143.47 / EA
Out of Stock

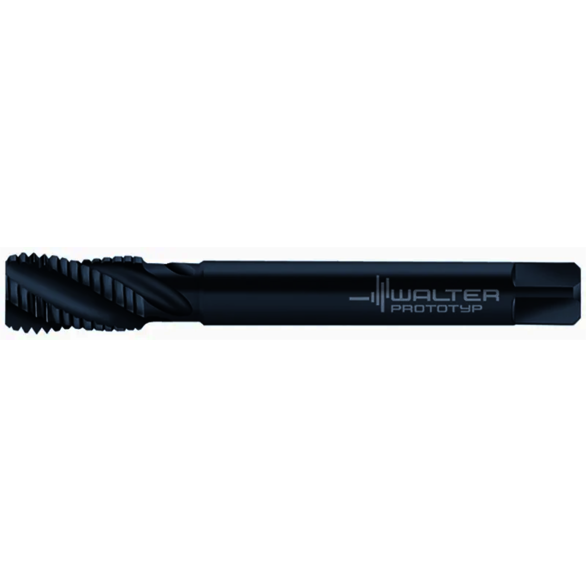

Image for PROTYP 6149871
  • Chip Flute Length: 1.42 in
  • Clamping Width: 0.276 in
  • Cutting Edge Length: 0.512 in
  • Driving Square Length: 0.394 in
  • Functional Length: 3.937 in
  • Overall Length: 4.013 in
  • Pitch: 0.059 in
  • Pre Machined Hole Diameter - Decimal: 0.413 in
  • Pre Machined Hole Diameter - Metric: 10.49 mm
  • Shank Diameter: 0.354 in
  • Shank Diameter - Decimal: 0.354 in
  • Shank Diameter - Metric: 8.991 mm
  • Thread Form Type: MF
  • Thread Length: 0.512 in
  • Thread Type: Internal
  • Taper Thread Count: 3
  • Helix Angle: 40 deg
  • Thread Series: X-pert
  • Tool Material: High Speed Steel
Standards:

DIN 374

Applications:

Stainless Steel
