Walter Tools

PROTYP 6244431 M2.6 Thread, 0.492 in Useable L, 0.018 in Pitch, Spiral Flute Taps

PROTYP 6244431
$61.94 / EA
Out of Stock

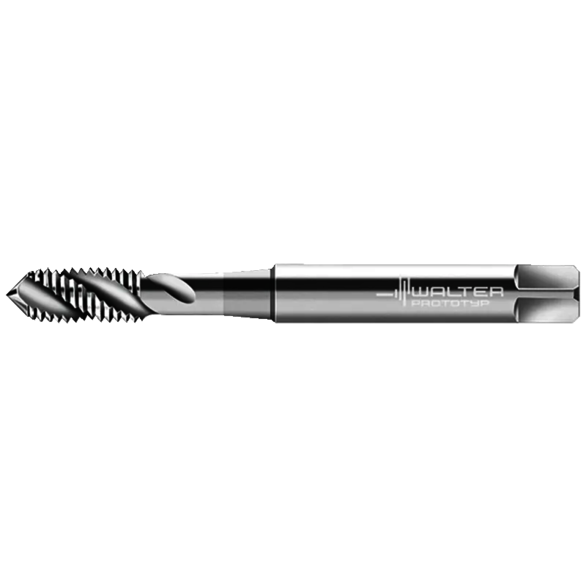

Image for PROTYP 6244431
  • Thread Size: M2.6
  • Chip Flute Length: 0.48 in
  • Clamping Width: 0.083 in
  • Cutting Edge Length: 0.157 in
  • Functional Length: 1.969 in
  • Helix Angle: 45 deg
  • Overall Length: 2.011 in
  • Pitch: 0.018 in
  • Pre Machined Hole Diameter - Decimal: 0.085 in
  • Pre Machined Hole Diameter - Metric: 2.159 mm
  • Shank Diameter: 0.11 in
  • Shank Diameter - Decimal: 0.11 in
  • Thread Length: 0.157 in
  • Thread Type: Internal
  • Taper Thread Count: 2
  • Shank Diameter - Metric: 2.794 mm
  • Thread Series: X-pert
  • Tool Material: High Speed Steel
  • Thread Form Type: M
Standards:

DIN 371

Applications:

Steel
