Walter Tools

PROTYP 6244463 M3 Thread, 0.709 in Useable L, 0.02 in Pitch, Spiral Flute Taps

PROTYP 6244463
$79.43 / EA
Out of Stock

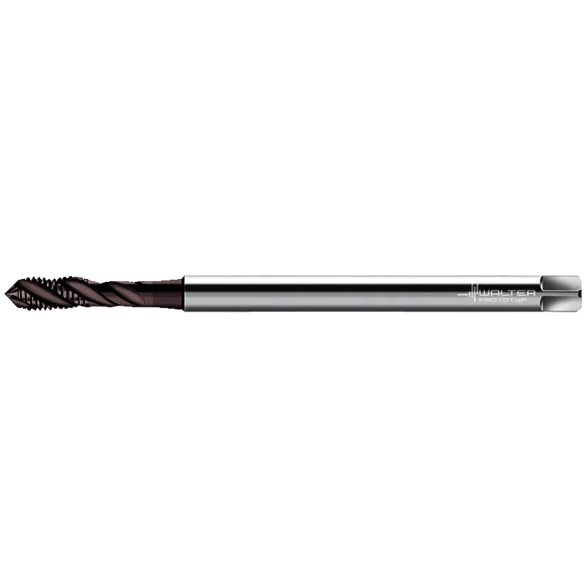

Image for PROTYP 6244463
  • Thread Size: M3
  • Chip Flute Length: 0.67 in
  • Clamping Width: 0.106 in
  • Cutting Edge Length: 0.236 in
  • Functional Length: 4.409 in
  • Helix Angle: 45 deg
  • Overall Length: 4.459 in
  • Pitch: 0.02 in
  • Pre Machined Hole Diameter - Decimal: 0.098 in
  • Pre Machined Hole Diameter - Metric: 2.489 mm
  • Shank Diameter: 0.138 in
  • Shank Diameter - Decimal: 0.138 in
  • Shank Diameter - Metric: 3.505 mm
  • Thread Form Type: M
  • Thread Length: 0.236 in
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 2
  • Thread Series: X-pert
Standards:

DIN371 L

Applications:

Steel
