Walter Tools

PROTYP 6244464 M4 Thread, 0.827 in Useable L, 0.028 in Pitch, Spiral Flute Taps

PROTYP 6244464
$73.83 / EA
Out of Stock

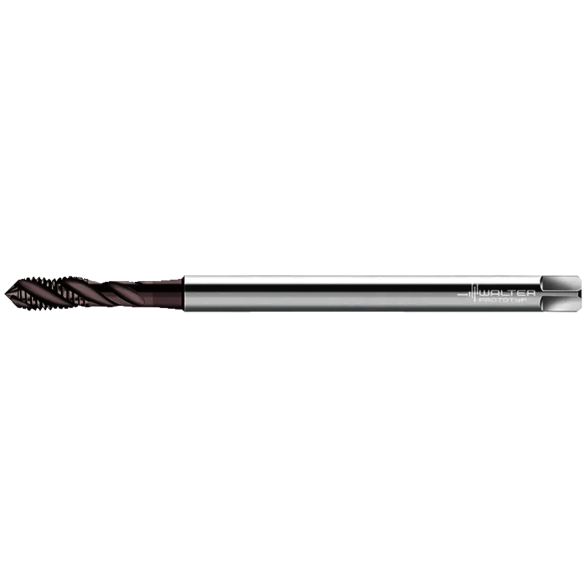

Image for PROTYP 6244464
  • Thread Size: M4
  • Chip Flute Length: 0.79 in
  • Clamping Width: 0.134 in
  • Cutting Edge Length: 0.276 in
  • Functional Length: 4.409 in
  • Helix Angle: 45 deg
  • Overall Length: 4.474 in
  • Pitch: 0.028 in
  • Pre Machined Hole Diameter - Decimal: 0.13 in
  • Pre Machined Hole Diameter - Metric: 3.302 mm
  • Shank Diameter: 0.177 in
  • Shank Diameter - Decimal: 0.177 in
  • Shank Diameter - Metric: 4.495 mm
  • Thread Form Type: M
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 2
  • Thread Series: X-pert
  • Thread Length: 0.276 in
Standards:

DIN371 L

Applications:

Steel
