Walter Tools

PROTYP 6244551 M6 Thread, 2.323 in Useable L, 0.039 in Pitch, Spiral Flute Taps

PROTYP 6244551
$66.02 / EA
Out of Stock

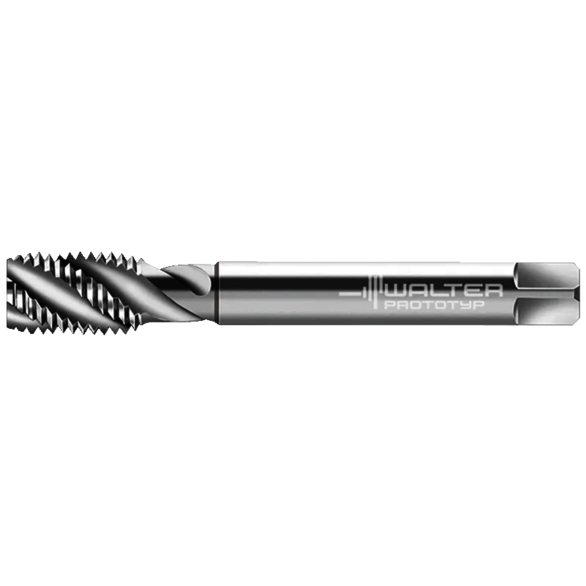

Image for PROTYP 6244551
  • Thread Size: M6
  • Chip Flute Length: 1.14 in
  • Clamping Width: 0.134 in
  • Cutting Edge Length: 0.394 in
  • Functional Length: 3.15 in
  • Helix Angle: 45 deg
  • Overall Length: 3.248 in
  • Pitch: 0.039 in
  • Pre Machined Hole Diameter - Decimal: 0.197 in
  • Pre Machined Hole Diameter - Metric: 5.003 mm
  • Shank Diameter: 0.177 in
  • Shank Diameter - Decimal: 0.177 in
  • Shank Diameter - Metric: 4.495 mm
  • Thread Form Type: M
  • Thread Length: 0.394 in
  • Thread Series: X-pert
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 2
Standards:

DIN 376

Applications:

Steel
