Walter Tools

PROTYP 6244559 M22 Thread, 3.661 in Useable L, 0.098 in Pitch, Spiral Flute Taps

PROTYP 6244559
$242.61 / EA
Out of Stock

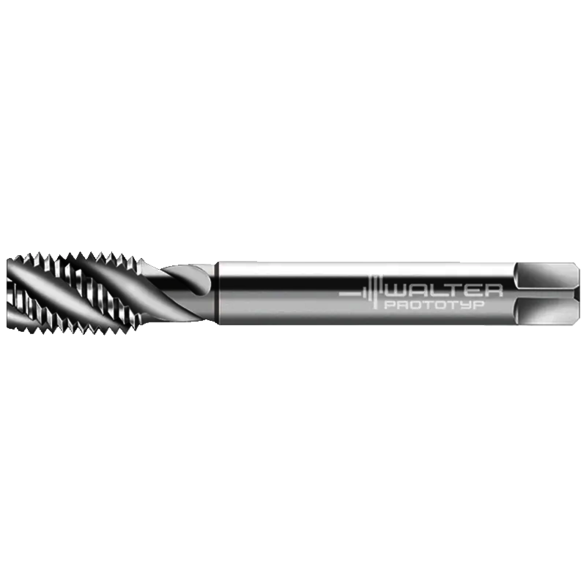

Image for PROTYP 6244559
  • Thread Size: M22
  • Chip Flute Length: 2.68 in
  • Clamping Width: 0.571 in
  • Cutting Edge Length: 0.984 in
  • Functional Length: 5.512 in
  • Helix Angle: 45 deg
  • Overall Length: 5.512 in
  • Pitch: 0.098 in
  • Pre Machined Hole Diameter - Decimal: 0.768 in
  • Pre Machined Hole Diameter - Metric: 19.5 mm
  • Shank Diameter: 0.709 in
  • Shank Diameter - Decimal: 0.709 in
  • Thread Form Type: M
  • Thread Length: 0.984 in
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 3
  • Shank Diameter - Metric: 18 mm
  • Thread Series: X-pert
Standards:

DIN 376

Applications:

Steel
