Walter Tools

PROTYP 6244585 M10 Thread, 3.031 in Useable L, 0.059 in Pitch, Spiral Flute Taps

PROTYP 6244585
$90.28 / EA
Out of Stock

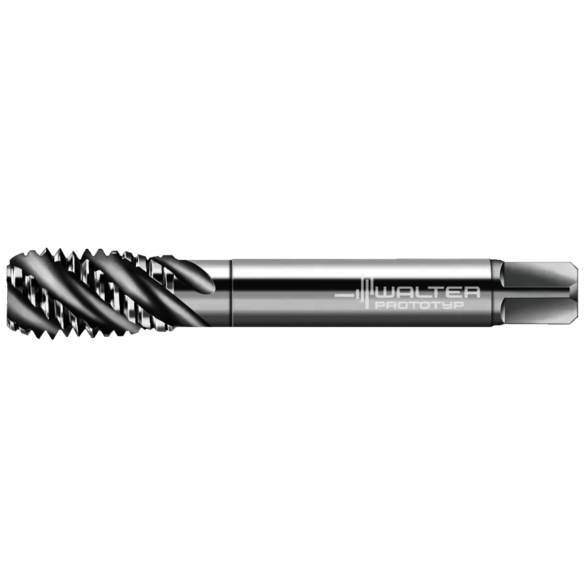

Image for PROTYP 6244585
  • Thread Size: M10
  • Chip Flute Length: 1.5 in
  • Clamping Width: 0.217 in
  • Cutting Edge Length: 0.591 in
  • Functional Length: 3.937 in
  • Helix Angle: 45 deg
  • Overall Length: 4.003 in
  • Pitch: 0.059 in
  • Pre Machined Hole Diameter - Decimal: 0.335 in
  • Pre Machined Hole Diameter - Metric: 8.509 mm
  • Shank Diameter: 0.276 in
  • Shank Diameter - Decimal: 0.276 in
  • Shank Diameter - Metric: 7.01 mm
  • Taper Thread Count: 3
  • Thread Form Type: M
  • Thread Length: 0.591 in
  • Thread Series: X-pert
  • Thread Type: Internal
  • Tool Material: High Speed Steel
Standards:

DIN 376

Applications:

Steel
