Walter Tools

PROTYP 6244614 M10x0.75 Thread, 2.638 in Useable L, 0.03 in Pitch, Spiral Flute Taps

PROTYP 6244614
$108.94 / EA
Out of Stock

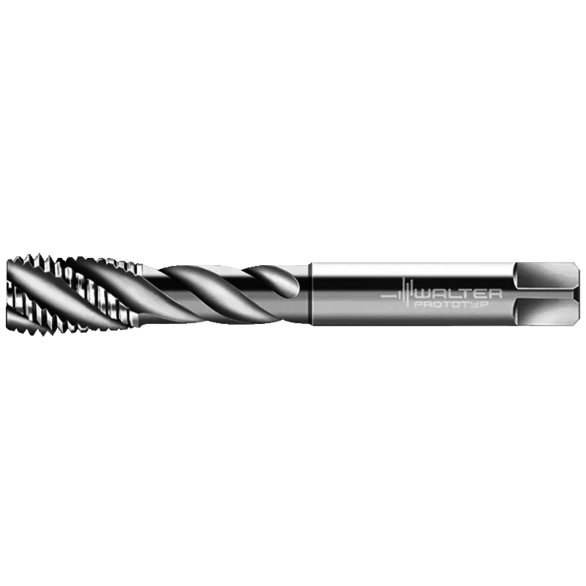

Image for PROTYP 6244614
  • Thread Size: M10x0.75
  • Chip Flute Length: 1.5 in
  • Clamping Width: 0.217 in
  • Cutting Edge Length: 0.472 in
  • Driving Square Length: 0.315 in
  • Functional Length: 3.543 in
  • Helix Angle: 45 deg
  • Overall Length: 3.609 in
  • Pitch: 0.03 in
  • Pre Machined Hole Diameter - Decimal: 0.364 in
  • Pre Machined Hole Diameter - Metric: 9.245 mm
  • Shank Diameter: 0.276 in
  • Shank Diameter - Decimal: 0.276 in
  • Shank Diameter - Metric: 7.01 mm
  • Thread Form Type: MF
  • Thread Length: 0.472 in
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 3
  • Thread Series: X-pert
Standards:

DIN 374

Applications:

Steel
