Walter Tools

PROTYP 6245583 M16 Thread, 2.677 in Useable L, 0.079 in Pitch, Spiral Flute Taps

PROTYP 6245583
$176.90 / EA
Out of Stock

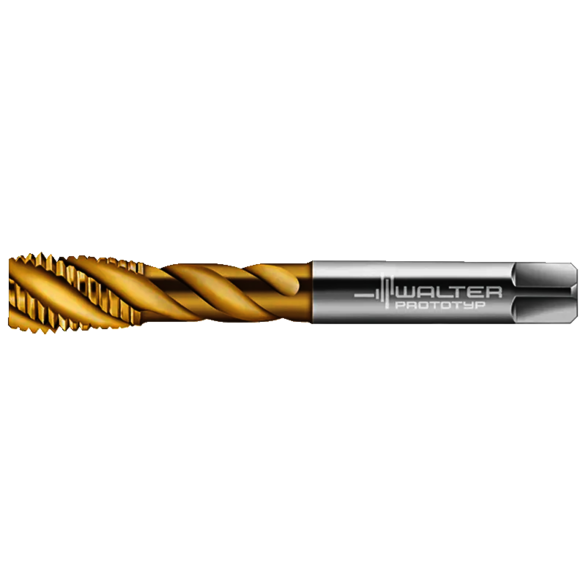

Image for PROTYP 6245583
  • Thread Size: M16
  • Chip Flute Length: 2.17 in
  • Clamping Width: 0.354 in
  • Cutting Edge Length: 0.787 in
  • Functional Length: 4.331 in
  • Helix Angle: 45 deg
  • Overall Length: 4.331 in
  • Pitch: 0.079 in
  • Pre Machined Hole Diameter - Decimal: 0.551 in
  • Pre Machined Hole Diameter - Metric: 13.99 mm
  • Series: EP2056305
  • Shank Diameter: 0.472 in
  • Shank Diameter - Decimal: 0.472 in
  • Shank Diameter - Metric: 11.98 mm
  • Thread Diameter - Metric: M16
  • Thread Form Type: M
  • Thread Length: 0.787 in
  • Thread Series: EP2056305
  • Thread Type: Internal
  • Taper Thread Count: 3
  • Tool Material: High Speed Steel
Standards:

DIN 376

Applications:

Cast Iron, Stainless Steel, NF Metals, Steel
