PROTYP 6245586 M24 Thread, 4.449 in Useable L, 0.118 in Pitch, Spiral Flute Taps

PROTYP 6245586
$345.72 / EA
Out of Stock

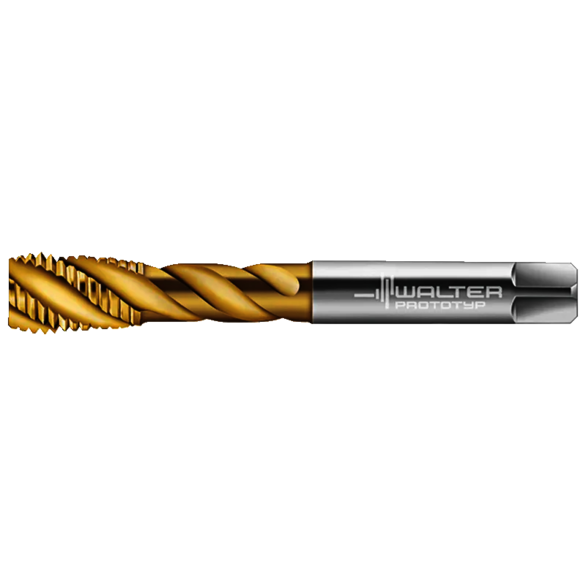

Image for PROTYP 6245586
  • Thread Size: M24
  • Chip Flute Length: 3.15 in
  • Clamping Width: 0.571 in
  • Cutting Edge Length: 1.181 in
  • Functional Length: 6.299 in
  • Helix Angle: 45 deg
  • Overall Length: 6.299 in
  • Pitch: 0.118 in
  • Series: EP2056305
  • Shank Diameter: 0.709 in
  • Shank Diameter - Decimal: 0.709 in
  • Thread Diameter - Metric: M24
  • Thread Form Type: M
  • Thread Length: 1.181 in
  • Thread Series: EP2056305
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 3
  • Shank Diameter - Metric: 18 mm
  • Pre Machined Hole Diameter - Metric: 21 mm
  • Pre Machined Hole Diameter - Decimal: 0.827 in
Standards:

DIN 376

Applications:

Cast Iron, Stainless Steel, NF Metals, Steel
