Walter Tools

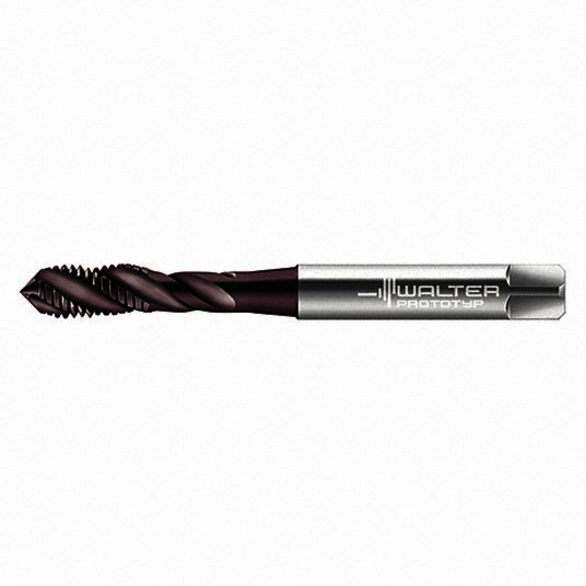

PROTYP 6245705 #4-40 Thread, UNC Thread, 0.437 in Useable L, Spiral Flute Taps
PROTYP 6245705
$78.65
/ EA
Out of Stock
- Thread Size - Decimal: 4-40
- Thread Size: #4-40
- Through Coolant: Through Coolant
- Thread Direction: Right Hand
- Number of Flutes: 3
- Class of Fit: 2B
- Thread Limit: H2.H3/2B
- Chamfer: Modified Bottom, Semi-Bottom
- Clamping Width: 0.11 in
- Cutting Edge Length: 0.236 in
- Driving Square Length: 0.187 in
- Functional Length: 2.205 in
- Helix Angle: 45 Degree
- Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
- Overall Length: 56.000 mm
- Part Number: 6245705
- Series/List: Paradur Eco Plus
- Shank Diameter: 0.141 in
- Shank Diameter - Decimal: 0.141 in
- Shank Diameter - Metric: 3.580 mm
- Shank Length: 44.900 mm
- Square Length: 2.790 mm
- Thread Length: 4.000 mm
- Thread Standard: UNC
- Flute Type: Spiral
Standards:
DIN/ANSI
Applications:
Cast Iron, Stainless Steel, NF Metals, Steel
DIN/ANSI
Applications:
Cast Iron, Stainless Steel, NF Metals, Steel
