Walter Tools

PROTYP 6245706 #6-32 Thread, UNC Thread, 0.539 in Useable L, Spiral Flute Taps

PROTYP 6245706
$73.19 / EA
Out of Stock

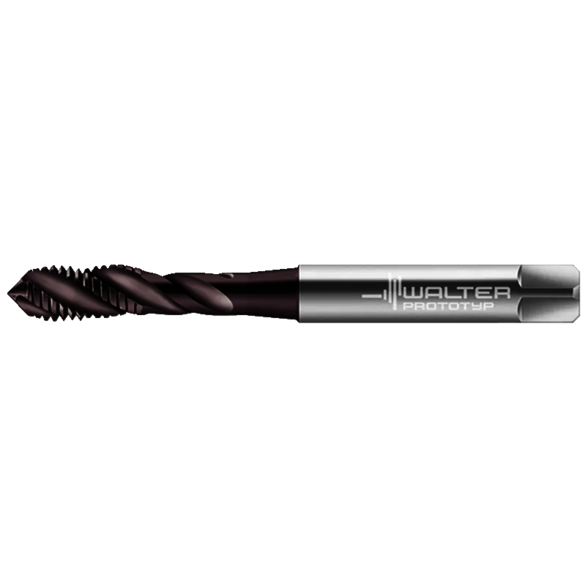

Image for PROTYP 6245706
  • Thread Size: #6-32
  • Chip Flute Length: 0.55 in
  • Clamping Width: 0.11 in
  • Cutting Edge Length: 0.256 in
  • Driving Square Length: 0.187 in
  • Functional Length: 2.205 in
  • Helix Angle: 45 deg
  • Overall Length: 2.258 in
  • Pre Machined Hole Diameter - Decimal: 0.112 in
  • Pre Machined Hole Diameter - Metric: 2.844 mm
  • Shank Diameter: 0.141 in
  • Shank Diameter - Decimal: 0.141 in
  • Shank Diameter - Metric: 3.581 mm
  • Taper Thread Count: 1
  • Thread Diameter - Wire: #6
  • Thread Series: AEP2251302
  • Thread Standard: UNC
  • Thread Type: Internal
  • Flute Type: Spiral
  • Tool Material: High Speed Steel
  • Thread Form Type: UNC
  • Thread Length: 0.256 in
Standards:

DIN/ANSI

Applications:

Cast Iron, Stainless Steel, NF Metals, Steel
