PROTYP 6245707 #8-32 Thread, UNC Thread, 0.701 in Useable L, Spiral Flute Taps

PROTYP 6245707
$70.46 / EA
Out of Stock

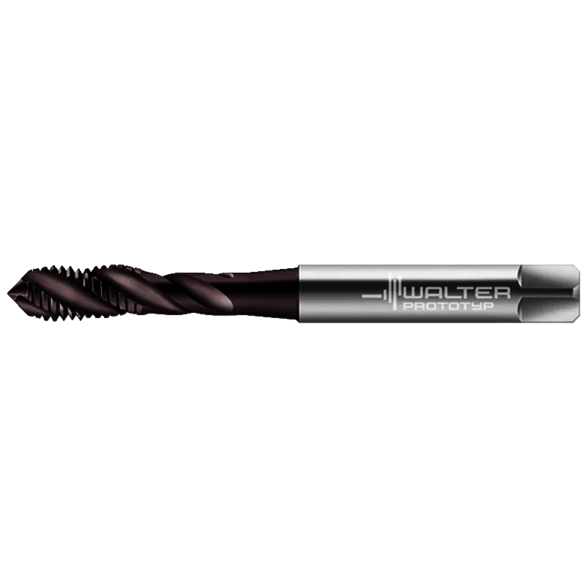

Image for PROTYP 6245707
  • Thread Size: #8-32
  • Chip Flute Length: 0.71 in
  • Clamping Width: 0.131 in
  • Cutting Edge Length: 0.276 in
  • Driving Square Length - Fractional: 1/4 in
  • Functional Length: 2.48 in
  • Helix Angle: 45 deg
  • Overall Length: 2.546 in
  • Pre Machined Hole Diameter - Decimal: 0.138 in
  • Pre Machined Hole Diameter - Metric: 3.505 mm
  • Shank Diameter: 0.168 in
  • Shank Diameter - Metric: 4.267 mm
  • Thread Diameter - Wire: #8
  • Thread Series: AEP2251302
  • Thread Standard: UNC
  • Thread Type: Internal
  • Tool Material: High Speed Steel
  • Taper Thread Count: 2
  • Flute Type: Spiral
  • Thread Form Type: UNC
  • Thread Length: 0.276 in
  • Shank Diameter - Decimal: 0.168 in
Standards:

DIN/ANSI

Applications:

Cast Iron, Stainless Steel, NF Metals, Steel
