Walter Tools

PROTYP 6245709 1/4-20 Thread, UNC Thread, 1.075 in Useable L, Spiral Flute Taps

PROTYP 6245709
$82.49 / EA
In Stock

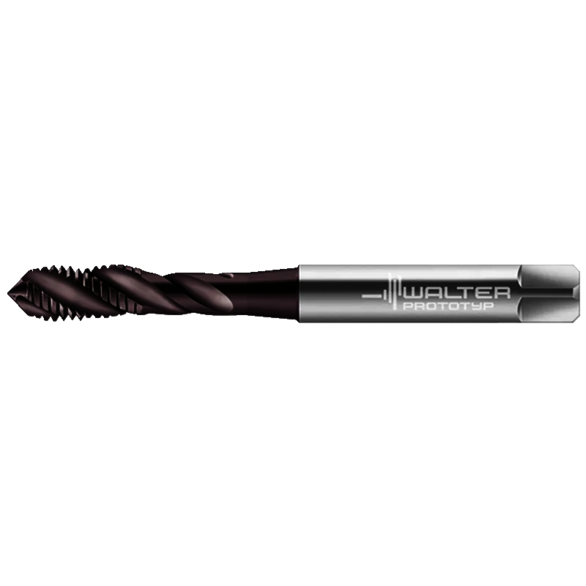

Image for PROTYP 6245709
  • Thread Size: 1/4/2020
  • Chip Flute Length: 1.06 in
  • Clamping Width: 0.191 in
  • Cutting Edge Length: 0.394 in
  • Driving Square Length: 0.313 in
  • Functional Length: 3.15 in
  • Helix Angle: 45 deg
  • Overall Length: 3.205 in
  • Pre Machined Hole Diameter - Decimal: 0.201 in
  • Pre Machined Hole Diameter - Metric: 5.105 mm
  • Shank Diameter: 0.255 in
  • Shank Diameter - Decimal: 0.255 in
  • Shank Diameter - Metric: 6.477 mm
  • Thread Form Type: UNC
  • Thread Length: 0.394 in
  • Thread Series: AEP2251302
  • Thread Standard: UNC
  • Thread Type: Internal
  • Taper Thread Count: 3
  • Flute Type: Spiral
  • Tool Material: High Speed Steel
Standards:

DIN/ANSI

Applications:

Cast Iron, Stainless Steel, NF Metals, Steel
