Walter Tools

PROTYP 6245714 3/4-10 Thread, UNC Thread, 3.051 in Useable L, Spiral Flute Taps

PROTYP 6245714
$266.87 / EA
Out of Stock

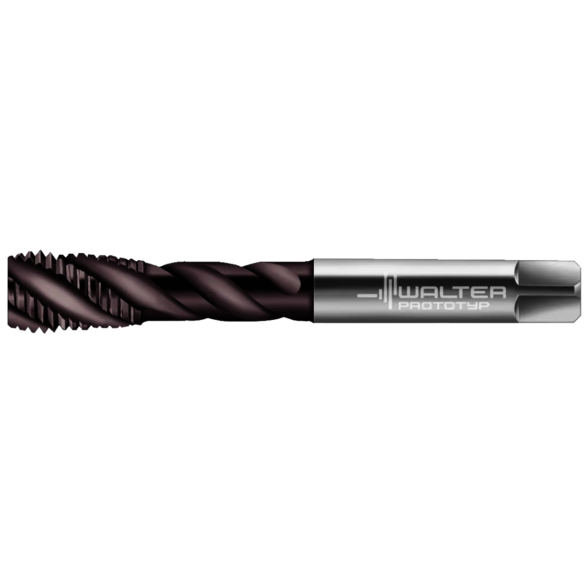

Image for PROTYP 6245714
  • Thread Size - Fractional: 3/4-10
  • Thread Size: 3/4/2010
  • Material: Powdered Metal
  • Through Coolant: Non-Through Coolant
  • Thread Direction: Right Hand
  • Finish/Coating: Hardlube
  • Number of Flutes: 4
  • Flute Direction: Right Hand
  • Class of Fit: 2B
  • Thread Limit: H2.H3/2B
  • Chamfer: Modified Bottoming
  • Clamping Width: 0.442 in
  • Cutting Edge Length: 0.984 in
  • Driving Square Length: 0.689 in
  • Flute Type: Fast Spiral
  • Functional Length: 4.921 in
  • Helix Angle: 45 Degree
  • Material Application: Aluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metals; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
  • Neck Length: 0.7677 in
  • Overall Length: 4.9210 in
  • Oversize: NO
  • Part Number: 6245714
  • Series/List: AEP2256302
  • Shank Diameter: 0.59 in
  • Shank Diameter - Decimal: 0.59 in
  • Shank Diameter - Metric: 14.990 mm
  • Square Length: 11/16 in
  • Tapping Depth: 44.500 mm
  • Thread Length: 24.990 mm
  • Thread Standard: UNC
Standards:

DIN/ANSI

Applications:

Cast Iron, Stainless Steel, NF Metals, Steel
