Walter Tools

PROTYP 6692232 M6 Thread, 1.181 in Useable L, 0.039 in Pitch, Spiral Flute Taps

PROTYP 6692232
$114.37 / EA
Out of Stock

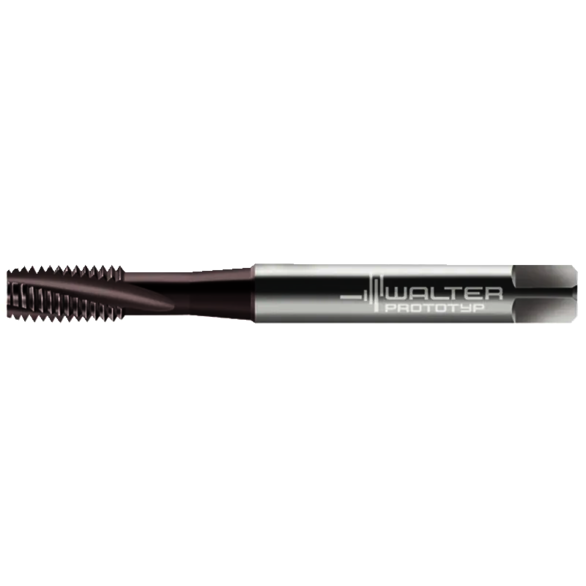

Image for PROTYP 6692232
  • Thread Size: M6
  • Chip Flute Length: 0.94 in
  • Clamping Width: 0.193 in
  • Cutting Edge Length: 0.394 in
  • Functional Length: 3.15 in
  • Helix Angle: 15 deg
  • Overall Length: 3.248 in
  • Pitch: 0.039 in
  • Pre Machined Hole Diameter - Decimal: 0.197 in
  • Pre Machined Hole Diameter - Metric: 5.003 mm
  • Series: 20410T2
  • Shank Diameter: 0.236 in
  • Thread Diameter - Metric: M6
  • Thread Form Type: M
  • Thread Length: 0.394 in
  • Thread Series: 20410T2
  • Thread Type: Internal
  • Taper Thread Count: 3
  • Shank Diameter - Metric: 5.994 mm
  • Tool Material: High Speed Steel
  • Shank Diameter - Decimal: 0.236 in
Standards:

DIN 371

Applications:

Steel
