Walter Tools

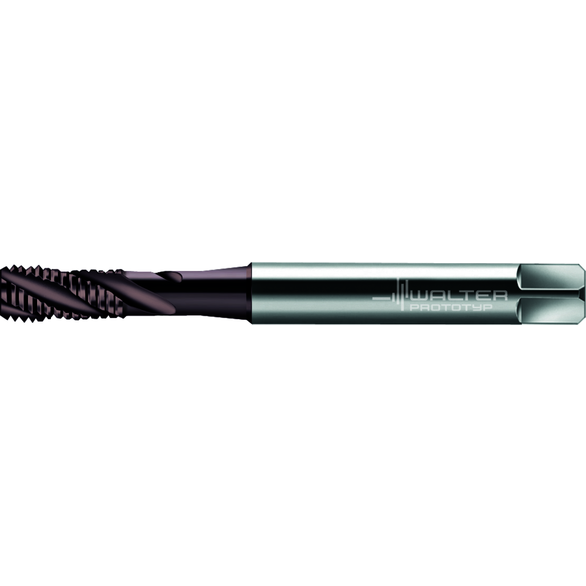

Walter USA 7557094 1/4-28, Modified Bottoming, Right Hand, Spiral Flute Tap
PROTYP 7557094
$91.91
/ EA
Out of Stock
- Thread Size - Fractional: 1/4-28
- Through Coolant: Non-Through Coolant
- Thread Direction: Right Hand
- Number of Flutes: 3
- Flute Direction: Right Hand
- Class of Fit: 2B/3B
- Chamfer: Modified Bottoming
- Helix Angle: 40 Degree
- Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
- Material Grade: WY80FC
- Overall Length: 45.000 mm
- Part Number: 7557094
- Series/List: TC117
- Shank Diameter - Metric: 6.480 mm
- Shank Length: 36.000 mm
- Square Length: 2.790 mm
- Thread Length: 4.000 mm
- Thread Standard: UNF
Standard/Approvals:TC117.UNF1-G0-WY80FC
Walter USA 7557094 1/4-28 | Modified Bottoming | Right Hand | 2B/3B | Spiral Flute Tap
