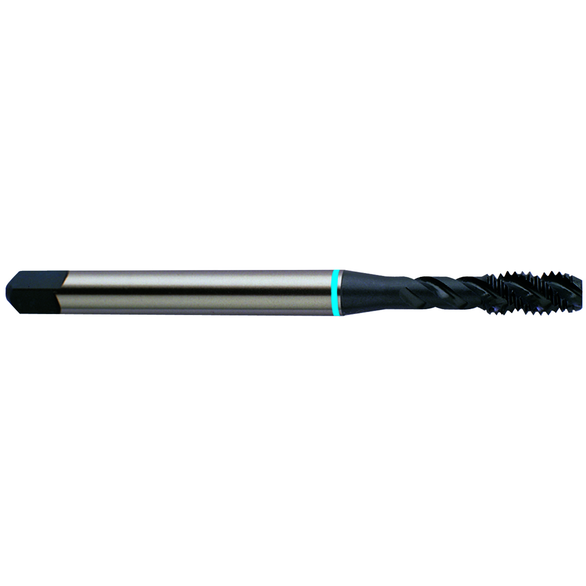

YG-1 BK423 BK Series Single End Spiral Flute Tap, Right Hand Cutting, 1/4-28 Thread, H3 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Hardslick Coated, Super HSS
YG1 BK423
$37.31
/ EA
Out of Stock
- Material: Super HSS
- Helix Angle: 40 Degree
- Shank Diameter - Decimal: 0.2550 in
- Shank Length: 2.1460 in
- Thread Length: 0.3540 in
- Thread Standard: UNF
- Overall Length: 2-1/2 in
Yg-1 Spiral Flute Tap, Single End, Series: Bk Series, Measurement System: Imperial, Unf Thread Standard, 1/4-28 Thread, Modified Bottoming Chamfer, 3 Flutes, Super HSS, Hardslick Coated, Right Hand Cutting Direction, 0.354 In Thread Length, 2-1/2 In Overall Length, 0.255 In Shank Diameter, 2.146 In Shank Length, Right Hand Flute Direction, H3 Thread Limit
- For stainless steels up to 35HRc60 deg cutting angle
Application:
YG-1 Cutting Tools BK423 1/4 in -28 | 2P-3P | Right Hand | H3 | Spiral Flute Tap
