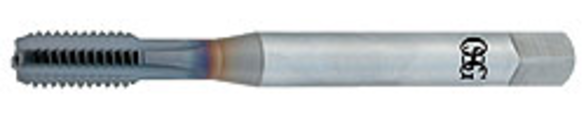

EXOTAP® DC 1105400108 Straight Flute Hand Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Bottoming Chamfer, 3 Flutes, TiCN Coated, VC-10
OSG 1105400108
$37.59
/ EA
Out of Stock
- Coolant Through: No
- Material: VC-10
- Finish/Coating: TiCN Coated
- Number of Flutes: 3
- Thread Limit: D5
- Chamfer Type: Bottoming
- Cutting Direction: Right Hand
- Flute Type: Straight
- Material Application: Cast Aluminum and Cast Iron
- Measurement System: Metric
- Overall Length: 80 mm
- Overall Length - Metric: 80 mm
- Series: 11054
- Thread Length - Metric: 26 mm
- Thread Standard: Coarse
- Shank Diameter - Metric: 6 mm
The EXOTAP®-DC taps are the industry leading tap for processing threads in cast iron, ductile iron and cast aluminum. The combination of ultra-strong rake with our VC10 powdered metal substrate makes this tap the absolute best solution for threading ductile castings.
- Eccentric thread relief - reduces friction during cutting, thereby minimizing heat generation and extending life
- Most rigid cut tap design, suitable for both through and blind holes
- Multi-layered TiCN (V) coating from OSG - the layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN
- Absolute versatility for any machining operation in ductile iron
- Utilize the coolant-thru the tool option for machines with spindle-through coolant to further optimize performance
- Combine with synchronized tapping and tap at speeds of 200 to 300 SFM in cast iron and beyond in aluminum
Standards/Approvals: DIN Rated
For general machine tapping, hand and power tapping for through or blind holes
EXOTAP DC Straight Flute Hand Tap | Series: 11054 | Measurement System: Metric | Coarse | M6x1 | Bottoming Chamfer | 3 Flutes | VC-10 | TiCN Coated | Right Hand Cutting | 26 mm Thread Length | 80 mm Overall Length | 6 mm Shank Dia | Cast Aluminum and Cast Iron Material Application
